Part 2, Soldering is done, time to clean and put back it back together and test.
The headstack is due back from JRF in a few days. $580! ...basically a new headstack: 2 heads replaced and 1 relapped, Flutter cleansed and all optically aligned...Oh and a new block.
Ouch! But at least it will be stellar!
So the replacement of the sockets, is done. I replaced most all the chips with new ones. I also went through and re-soldered every Molex connection on the boards, so every pin...about 1000 of them... Then cleaned every connector and connection.

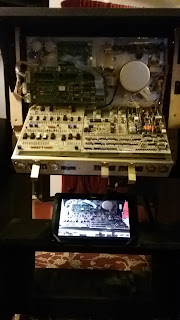

I reassembled the motherboard and daughter boards while looking at the picture I took during disassembly. You can see my tablet below the Deck.
With everything back together I was able to place it in the studio even though I need to rebuild the Power supply which had showed weak measurements for the 22volt regulators (only 6v), Powering up the unit, nothing works. The right channel showered a pegged level (oscillating?) and the right side did not... the VU on the right does not light up but the buttons do, so it has power... more fun, but really I can't know for sure or deal with those issues until I fix the power supply. Then I can test again. Also the heads will be back then.
But it looks so good in the studio!!!
The headstack is due back from JRF in a few days. $580! ...basically a new headstack: 2 heads replaced and 1 relapped, Flutter cleansed and all optically aligned...Oh and a new block. Ouch! But at least it will be stellar!
So the replacement of the sockets, is done. I replaced most all the chips with new ones. I also went through and re-soldered every Molex connection on the boards, so every pin...about 1000 of them... Then cleaned every connector and connection.
I reassembled the motherboard and daughter boards while looking at the picture I took during disassembly. You can see my tablet below the Deck.
With everything back together I was able to place it in the studio even though I need to rebuild the Power supply which had showed weak measurements for the 22volt regulators (only 6v), Powering up the unit, nothing works. The right channel showered a pegged level (oscillating?) and the right side did not... the VU on the right does not light up but the buttons do, so it has power... more fun, but really I can't know for sure or deal with those issues until I fix the power supply. Then I can test again. Also the heads will be back then.
But it looks so good in the studio!!!
